The Global Voyage of Water Heaters: Ensuring Safe Delivery to Your Side
Packaging for water heaters is a key component in ensuring that the product is safely transported and protected. It usually consists of a combination of an external cardboard box and internal foam to protect the water heater during transport.

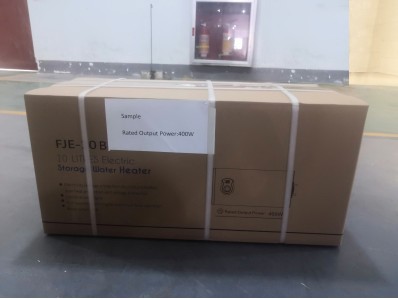

Outer packaging: cardboard box
Carton: the most widely used packaging products, according to the different materials used, there are corrugated cardboard boxes, single-layer cardboard boxes, etc., with various specifications and models. Carton commonly used three-layer, five-layer, seven-layer use less, each layer is divided into lining paper, corrugated paper, core paper, face paper, lining, face paper, tea board paper, kraft paper, core paper with corrugated paper, a variety of paper colour and feel are not the same, the paper produced by different manufacturers (colour, feel) is not the same.

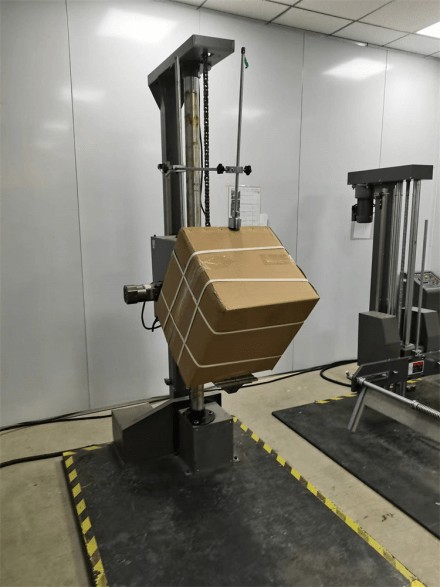

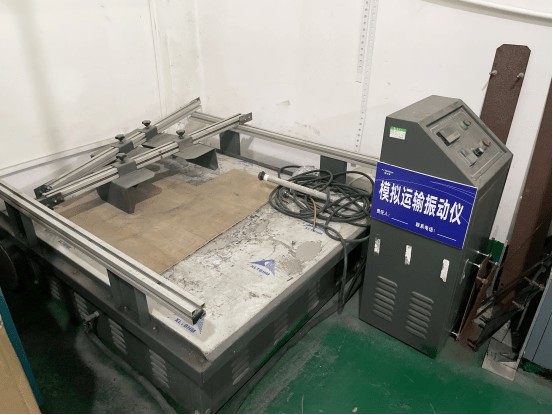

Packaging carton as an indispensable part of modern logistics, bear the important responsibility of containment, protection of products, aesthetics, packaging carton physical performance indicators become the basis for its quality assessment, the accuracy and reliability of the test data need to be guaranteed by good environmental conditions for testing.
Basic test items
1、Export Packaging Carton Inspection Regulations SN/T 0262-1993
2、Appearance GB/T 6543-2008
3、Size GB/T 6543-2008、Folding resistance of shaking lid GB/T 6543-2008
5、Thickness GB/T 6547-1998

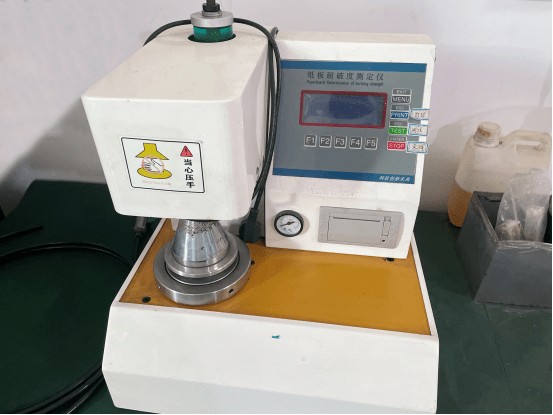

6、Breaking strength GB/T 6545-1998
7、Puncture strength GB/T 2679.7-2005
8、Edge compression strength GB/T 6546-1998、Adhesive strength GB/T 6548-2011
10、Empty box compression GB/T 4857.4-2008
11、Moisture content GB/T 462-2008
12、Moisture resistance GJB 1109A-2000
13, Delamination quantitative ISO 3039: 1975
14、Flat compression strength GB/T 6980-1995
Through the above test, we can understand the performance of the carton, and provide reliable data basis for enterprise packaging design.

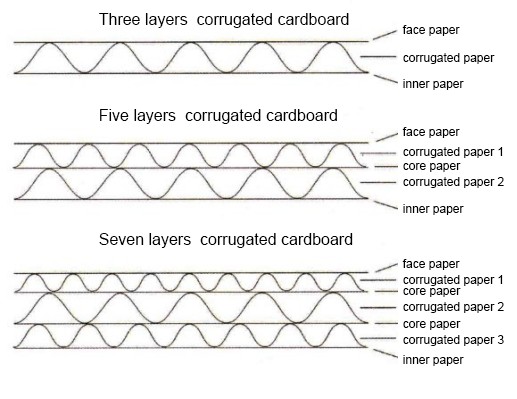

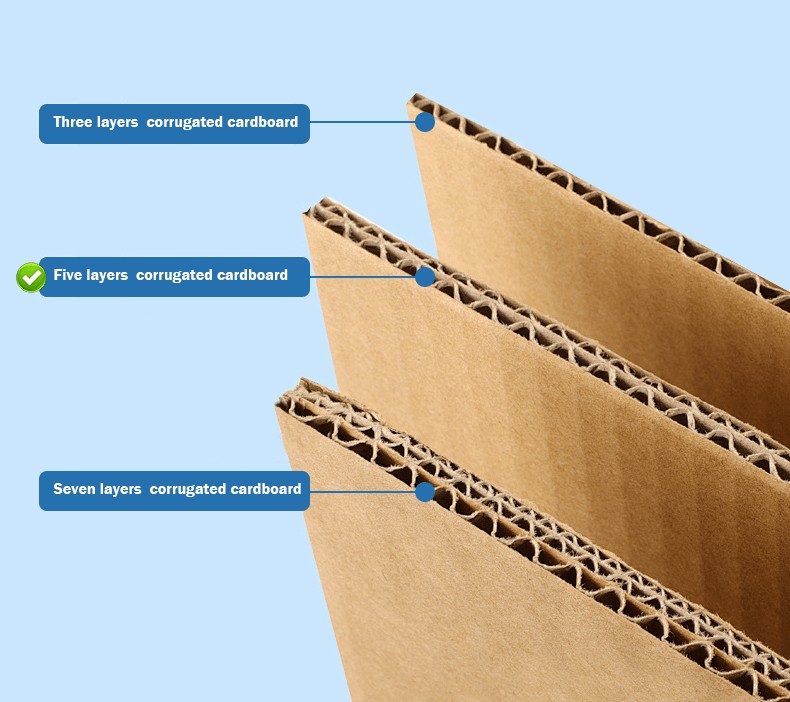

Corrugated cardboard is made of face paper, liner, core paper and corrugated paper processed into corrugated wave flute by bonding. According to the needs of commodity packaging, corrugated board can be processed into single-sided corrugated board, three-layer corrugated board, five-layer, seven-layer and other corrugated board.
The function of the corrugated board bonded into corrugated board varies with different corrugated shapes. Even if the same quality of face paper and liner are used, the performance of the corrugated board will be different due to the difference in flute shapes. There are four types of corrugated flute shapes in common use internationally, namely, A-type flute, C-type flute, B-type flute and E-type flute. Their technical indicators and requirements are shown in Table I. A-type flute made of corrugated cardboard has a better cushioning, a certain degree of elasticity, C-type flute than A-type flute, followed by stiffness and impact resistance. However, the stiffness and impact resistance are better than that of A-type flute; B-type flute is arranged in high density, and the surface of the corrugated board is flat, with high bearing pressure, which is suitable for printing; E-type flute is thinner and denser, which presents its rigidity.We mainly use five-layer corrugated cardboard boxes with good compression resistance.

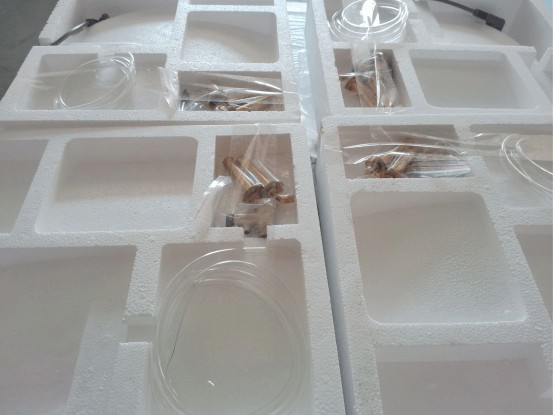

Inner Packaging: Foam

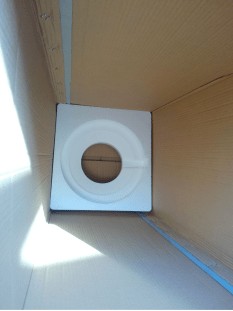

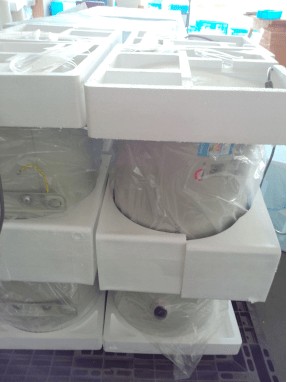

Foam packaging is a kind of packaging products made of foam material, usually used to play the role of protecting the contents. Foam packaging, usually referred to as foam packaging, mainly refers to the evaporable polystyrene (EPS) raw materials through the mould by thermal processing, the production of packaging products commonly known as "foam". Expandable polystyrene is an ideal packaging material, through the moulding process, it can be processed into various shapes and thicknesses according to the needs of packaging products. Under high load conditions, the material achieves cushioning and shock absorption through deformation, energy absorption, energy decomposition, etc., and at the same time, it has the functions of heat preservation and insulation.EPS packaging products are generally white in colour.
Sealing bag Sealing bag, polyethylene (LDPE) and high-pressure linear polyethylene (LLDPE) blown film moulding, hot cutting machine bag, made of a kind of plastic bags can be repeated sealing. Accessories are mainly packaged in self-sealing bags, which are more convenient to take.

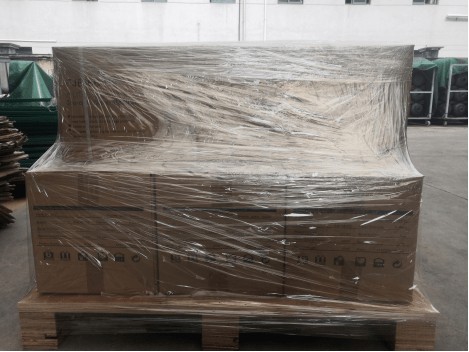

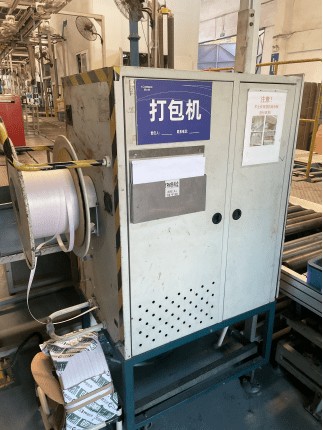

Different transport specifications packaging makes a difference: less than 10 units, a cardboard box packaging, baler sealing can be. Greater than 10 units, playing wooden pallet + winding film, easy to forklift loading, improve efficiency, reduce handling damage.
In summary, water heater packaging is carefully designed to ensure safe transport and protection of the product. The combination of an external cardboard box and internal foam provides structural support, cushioning and insulation that meets stringent quality standards to ensure that the water heater is safely transported to its destination.
