Structure and Operation of a Heat Pipe

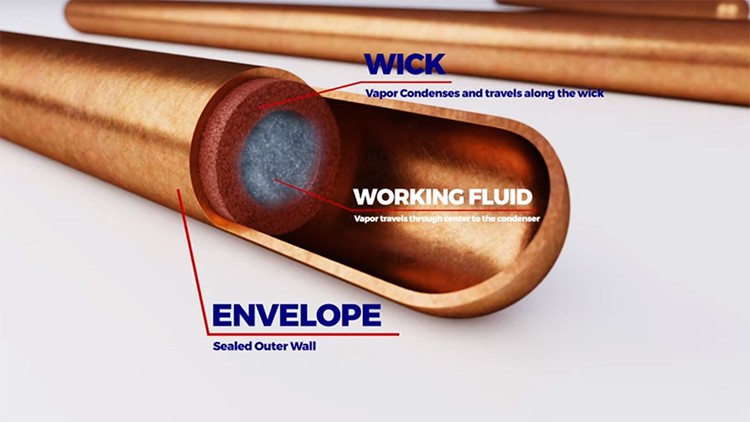

A wick structure, an envelope, and some working fluid make up a heat pipe. Vacuum processing of the fluid enables two-phase operation at a variety of temperatures while it is in use. What is referred to as "the evaporator" receives heat as input.Heat pipes are completely sealed, passive, two- faced heat switch devices.It takes reap the advantages of a fluid's high latent temperature of vaporization to attain highly efficient heat transport. A high temperature tube is comprised of a large envelope, a wick structure and a small amount of doing work fluid.

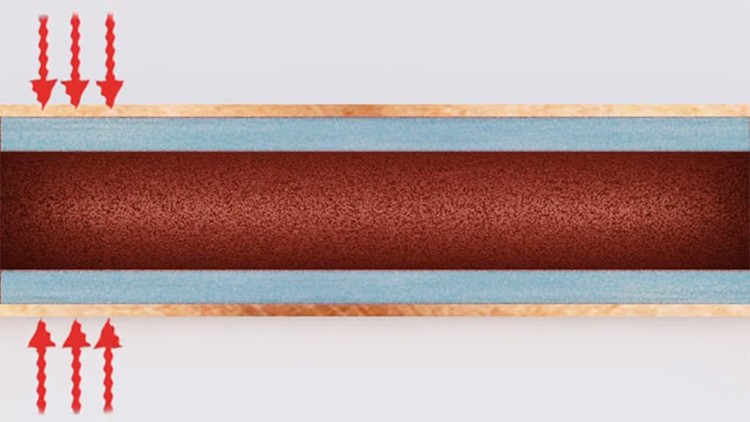

The fluid is manufactured under vacuum which allows pertaining to 2- phase procedure all over a large temperature range. During working, heat is input to the system known as the evaporator.

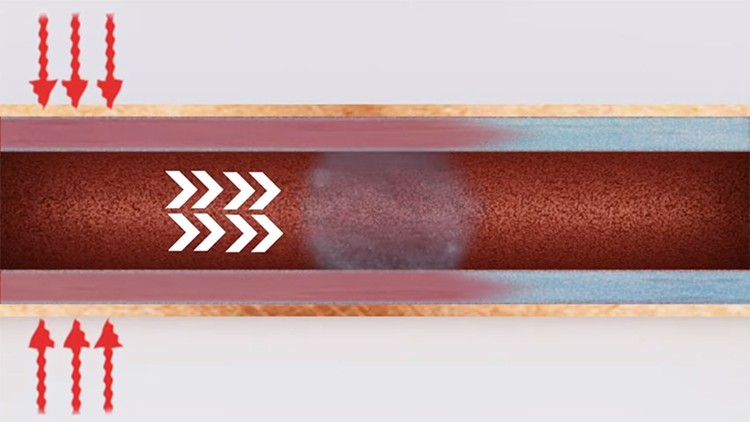

The substance is brought to a boil by the heat, which then pushes the fluid water vapor to the heater's colder region.

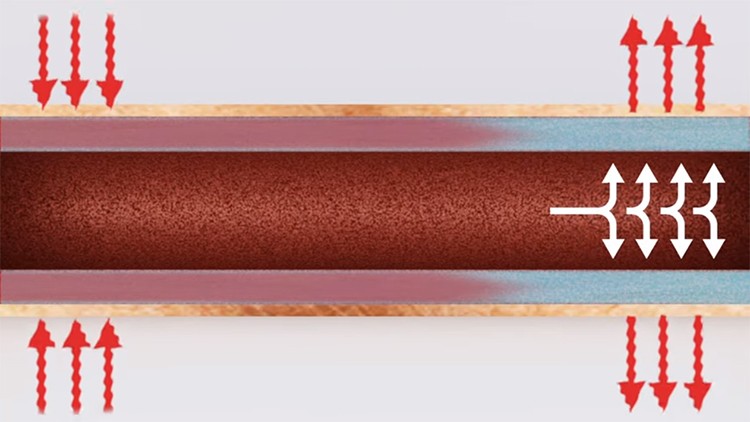

The colder region, which can be ordinarily coupled to the heat put, is known as the condenser.. The fluid collapses it really is latent heat and condenses back to a liquid which is yet again absorbed within the wick composition.

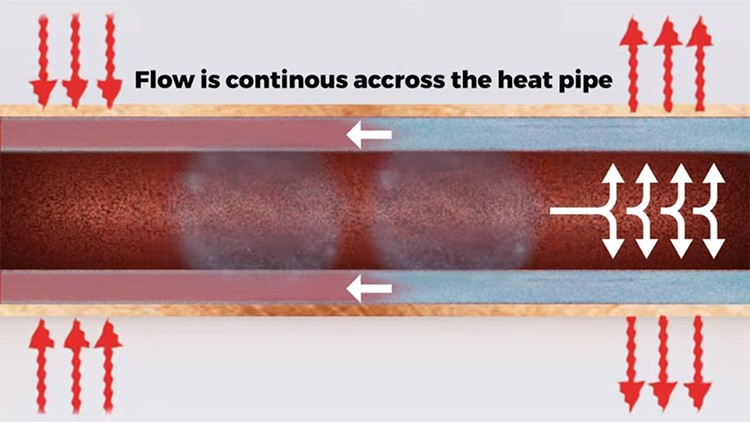

After that, the fluid is passively pumped back to the evaporator by its wick structure.

This entire method ends in an extremely low temperatures difference across the entire high temperature pipe.

Heat Pipe vs Solid Copper - Comparison Demonstration

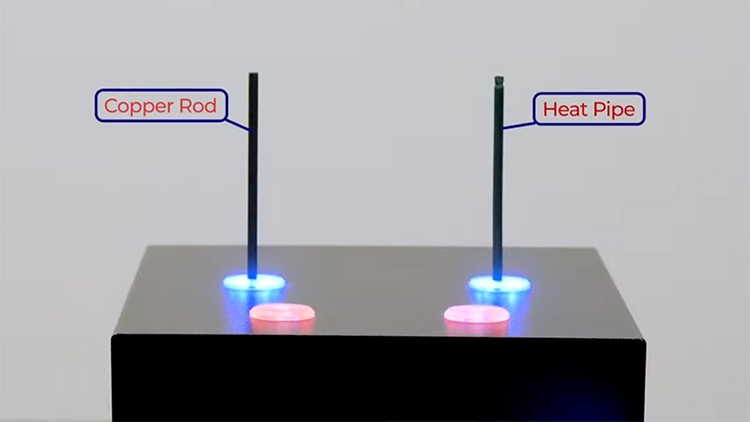

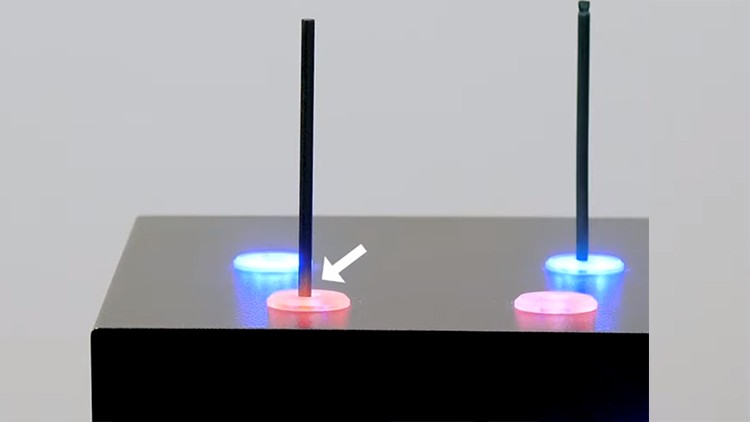

This kind of comparison experiment shows how quickly heat transfers from heat pipes to good copper poles. The copper rod and heat pipe are both painted with thermochromatic paint, which will undoubtedly change color because it transfers heat.

The copper rod is typically moved to the hot area first. A good, extremely strong thermal conductor is copper. You can observe and switch from the copper rod's base upward because it has a thermal conductivity of about 400 watts permark.

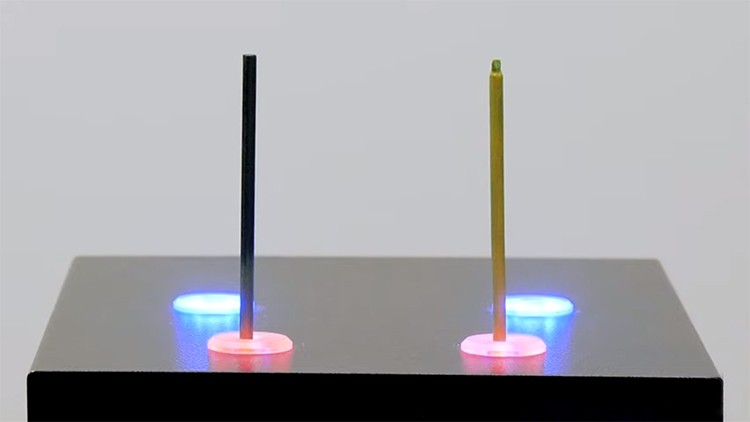

The heat pipe has now been shifted into the hot zone. The heat pipe quickly isothermalizes and maintains a very constant temperature along its entire length as the fluid vaporises and transfers.

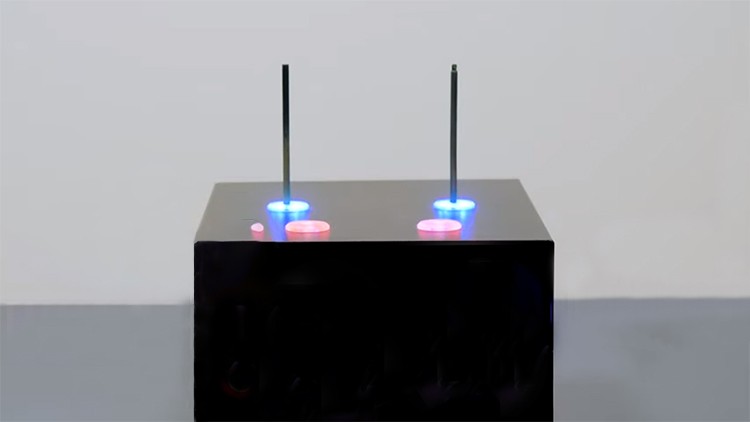

Now the copper mineral rod as well as the heat pipe is usually moved returning to the cold area which implies that the heat tube can work in an undesirable orientation and still is capable to provide the same large effective thermal conductivity.
